Conforms To
DIN44904

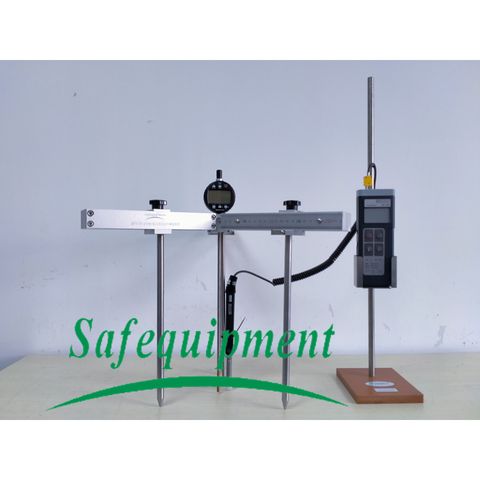

Cookware Hot Bottom Concave Measuring Device DIN 44904 （Model：SFT S1-2196）
Application
It is usedto test the hot bottom concave measurement of cookware.
Conforms To
DIN44904
Specifications
A, Material: Aluminum and Stainless Steel etc.
B, Dial indicator: range 0-12.5mm(including output data cable)
C, Test accuracy: 0.0005mm
D, Thermometer: 2s response time with probe temperature measurement, temperature range 0-300℃
E, Measure rod: 300 mm long, customized dial gauge measuring rod with copper zinc material at the lower end
F, Horizontal distance 0-180mm adjustable (including scale steel ruler)
G, Iron racks: the height 600mm adjustable, used to place the thermometer
H, Dimensions: W445mm*D445mm*H370mm
I, weight: 3Kg
OrderingInformation
SFT S1-2196 Cookware Hot Bottom ConcaveMeasuring Device DIN44904
