Conforms To
EN8442-1 Clause 6.5 Handles softening, ISO 306

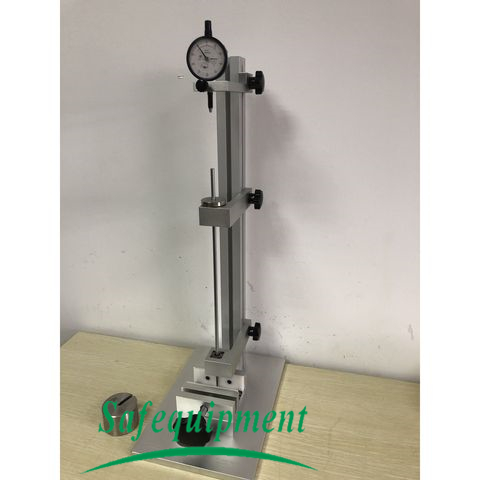

Puncture Test Device EN 8442-1 （Model：SFT S1-2195）
Application
Used for thesoftening test of non-metallic knife handles. It is used to determine whetherthe plastic handles of cooking utensils can be penetrated more than thespecified value at a specific temperature. This penetration device should beplaced in a thermostatic water bath (temperature can be adjusted 15-95 ℃) during the test.
Conforms To
EN8442-1 Clause 6.5 Handles softening, ISO 306
Specifications
A, Material: Aluminum and Stainless Steel etc.
B, Dial indicator: range 0-100mm/0.01mm
C, Test accuracy: 0.01mm
D, Test needle: 1mm2+/-0.015mm2
E, The up and down distance can be adjusted, with a sample holder
F, Weight: 10N +/- 0.2N
G, Dimensions: W300mm × D200mm × H500mm
H, Weight: 5Kg
OrderingInformation
SFT S1-2195 PunctureTest Device EN8442-1
