Conforms To
ISO8442-1 Clause 6.2 Annex A.2, EN ISO8442-2 Clause 7.2.1 Annex D

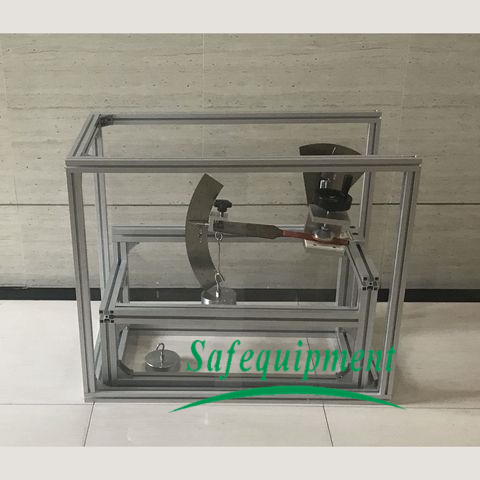

Strength Test Apparatus for Knives, Carving forks and Spatulas ISO 8442 (Model:SFT S1-2194)
Application
StrengthTest Apparatus for Knives, Carving forks and Spatulas.
Conforms To
ISO8442-1 Clause 6.2 Annex A.2, EN ISO8442-2 Clause 7.2.1 Annex D
Test Principle
Clamp the handleof the sample of be tested in the pivoted clamp. Position the handle in theclamp so that during the test the tip of the blade or carving fork prongs andthe end of the handle will remain in essentially the same horizontal plane.
Specifications
A, Material: 45 steel, aluminum, stainless steel and plug steel
B, 10S position can be locked
C, Weight: 20N ± 1N
30N ± 1N
25N ± 1N
Above weights with TIP CLAMPfixture and pointer
D, Optional protective cover: aluminum and acrylic(W800mm*D460mm*H670mm)
E, Dimensions: W710mm*D350mm*H590mm
F, Weight: 30Kg (Indlude weights)
OrderingInformation
SFT S1-2194 Strength Test Apparatus for Knives,Carving forks and Spatulas ISO 8442
