Conforms To
EN12983-1:2020 Clause 9.2 Base stability Annex L

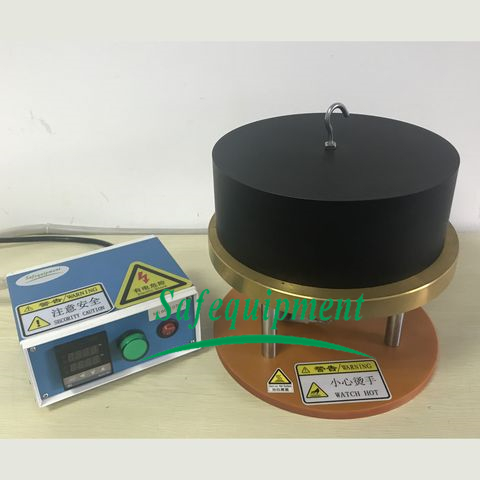

Aluminum Block with Heating Device EN 12983 Annex L（Model：SFT S1-2193）
Application
Used to thebottom thermal shock stability test of the cookware.
Conforms To
EN12983-1:2020 Clause 9.2 Base stability Annex L
Specifications
A, Aluminum block: diameter 220mm+5mm/-2mm, height 80mm, with sensorhole
Aluminum content of at least 96%,surface hard alumina treatment
spray black 682(coating thickness 25um)
B, Heating device: diameter 240mm, height 130mm, made of copper andinsulation board
C, Heating temperature: 0-500 degrees adjustable
D, Power: 220V 50HZ 2000W
E, Heating Devive Dimensions: W130mm*D170mm*H85mm
G, Weight: 15Kg
OrderingInformation
SFT S1-2193 Aluminum Block with Heating DeviceEN12983 Annex M
