Conforms To
ISO 3795, ASTM D5132, GM9070P, GMW 3232, SAE J369, BS AU1690, FMVSS 302, SAE J369,JIS D 1201, GB/T 8410, MS300-08

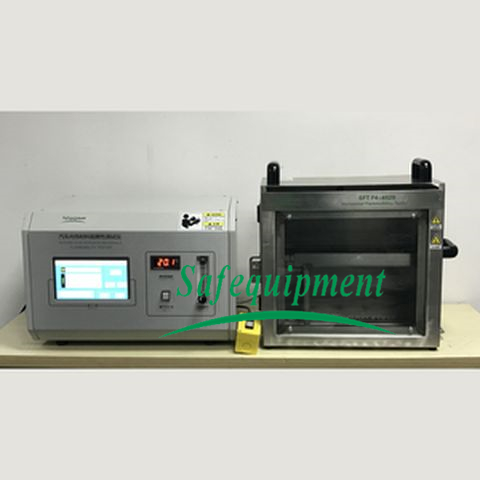

Horizontal Flammability Tester (Model:SFT F4-4020)
Application
Horizontal Flammability Tester (AutomotiveInterior Materials Flammability Tester), to determine the comparative burn rates and burn resistance oftextiles, plastics and other automotive interior materials. Comprises draft free stainless steel cabinet with observationwindow, sample holder and door mounted burner.
Conforms To
ISO 3795, ASTM D5132, GM9070P, GMW 3232, SAE J369, BS AU1690, FMVSS 302, SAE J369,JIS D 1201, GB/T 8410, MS300-08
Features
--- Selfstainless steel contained chamber with viewing window
--- Heatresistant glass observation window
--- Easyaccess to testing area during setup
--- Door-mountedburner with gas adjustment
--- Automaticgas control system including solenoid control gas value
--- AccurateFlame Impingement Control, user adjustable pilot burner and manual gas togglevalve
--- Touchscreen operation
---Stainless steel specimen holder for standard & non-rigid samples
--- Specimenholders accommodate a variety of material types
---Electronic timing device for specimen event timing
--- Burningdrip tray, easy to clean
--- Digitalflame impingement timer
--- Solenoidgas control valve
--- Push-buttongas control
--- Chambertemperature electronic display
--- With ahand-held button box, easy to operate
Specifications
A, PowerSupply: 220V50Hz or 115V 60Hz
B, Time of Test: 0~99.99 Sec/Min/Houradjustment
C, Test Chamber: stainless steel 385mmL* 204mm D * 360mm H
Ten holes at the bottom of the chamber are19mm in diameter, with ventilation slots 13mm wide near the top
The central part of the top of the chamber bythe center of the rear plate 20mm away from the inside, with a small hole canbe inserted thermometer
D, Bunsen burner: Diameter of 9.5mm
Flame height of 38mm
The center of the nozzle is 19 mm below the centerof the free end of the specimen
E, Sample holder: the front end ofthe combustion chamber from the surface distance 22mm
Two longitudinal outer side of the combustionchamber from the surface of the distance 50mm
The first fulcrum 38mm from the front
The second fulcrum from the first fulcrum 100mm
The third pivot is 154mm from the second pivot
F, Sample folder wire diameter:0.25mm and metal wire spacing: 25mm
G, Dimensions (WxDxH): Chamber 430 (L)mm X204 (D) mmX420 (H) mm
Control box 460(L)mm X365 (D)mm X310 (H) mm
H, Weight: 30KG
Remark: Testing requires customer-suppliedtechnical grade methane (minimum 99% purity) at 2-3 PSI
Gas Supply: Methane or natural gashaving a heating value of 37+/-1 MJ/m³
Ordering Information
SFT F4-4020 Horizontal FlammabilityTester
(Automotive Interior Materials FlammabilityTester)-220V 50Hz or 115 60Hz
