Conforms To
ASTM F-963 clause 8.10.1; EN71 clause8.8; GB6675 clause A.5.24.7

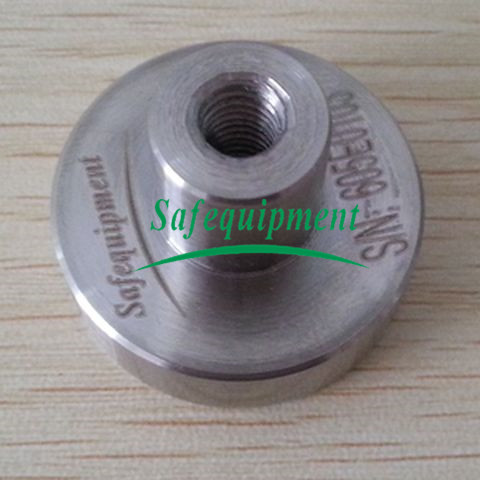

Compression Head for Force Gauge (Model:SFT S1-2086)
Application
Assess whether the products meet therequirements of the sharp point....
Conforms To
ASTM F-963 clause 8.10.1; EN71 clause8.8; GB6675 clause A.5.24.7
Specifications
A, Made of304 stainless steel materials
B, Surfaceby the sand blasting and spray processing
C, Configurationchange lever and can be equipped with a variety of push-pull effort.
| ASTM F-963 8.10.1 | EN 71-1 8.8 | GB 6675 |
Diameter | 1.125"(±0.015") | 30(±1.5)mm | 30(±1.5)mm |
Pressure face chamfering requirements | Radius 1/32" | No burr | Radius 0.8mm |
Pressure head thickness requirements | 0.375" | NO | ≥10mm |
Non standard accessories | Poppet pressure | ||
OrderingInformation
SFT S1-2086Compression Head for Force Gauge
Options:
SFT S1-2086ACompression Test Stand
Imada Dynamometer
