Sharp Point Tester (Model:SFT S1-2072)

ConformsTo

CPSC 16 CFR1500.48 ; ASTM F 963 Clause4.9; BS EN71-1 Clause 8.12.2; ST 2002; ISO 8124-1

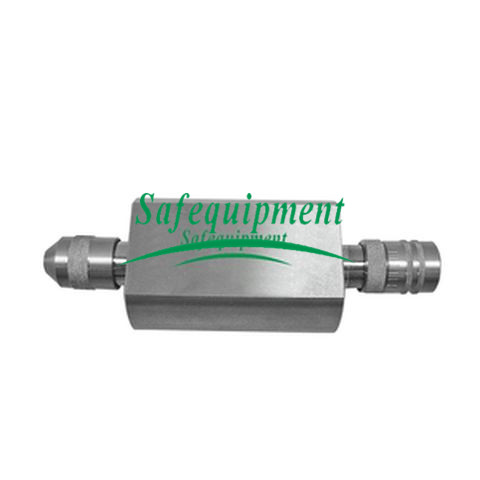

Sharp Point Tester (Model:SFT S1-2072)


Application

To determinewhether accessible sharp points on Child-related products are likely to causeinjury. If the accessible sharp point penetrates a specified depth into thesmall rectangular opening of the tester, the LED is illuminated to indicatethat the point is unacceptably sharp. Child-related products intended for useby children under 8 years old are subject to this requirement before or afteruse & abuse testing.

ConformsTo

CPSC 16 CFR1500.48 ; ASTM F 963 Clause4.9; BS EN71-1 Clause 8.12.2; ST 2002; ISO 8124-1

Specifications

A. Stainless steel; electroplating treatment

B. Battery: 1.5 voltage

C. Standard Accessories: 1LBS balance weight

D, Arectangular opening measuring (1,02 ± 0,02) mm by (1,15 ± 0,02) mm in the endof the slotted cap establishes two reference dimensions

E, The sensinghead is recessed (0,38 ± 0,02) mm below the end cap

F, There is adistance of (0,12 ± 0,02) mm between it and a return spring having a force of2.5N(+0/-0.3)

G. Size: 112×16×16 mm(LxWxH)

H. Weight: 0.8 KG

OrderingInformation

SFT S1-2072 SharpPoint Tester
