Conforms To:
IEC 60061-3

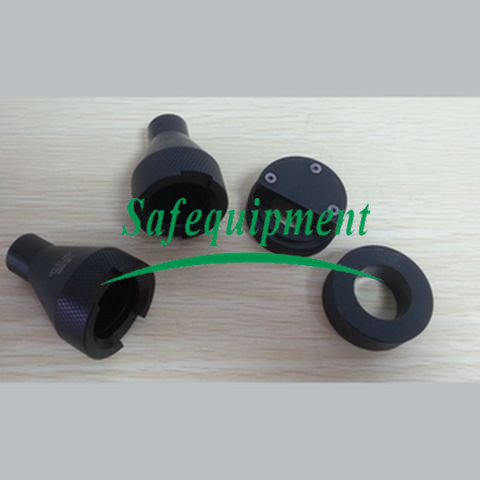

E26 Gauge 7006-27D-3/7006-29-3/7006-25B-2 (Model:SFT G2-5110)
Application:
Safequipment offers a wide range ofgauge to meet the most common standards including those from IEC, EN, UL,GB,DIN,VDE and others. Such standards require the checking of size &definition etc. these gauges are constructed from senior stainless steel andappropriate steel with a hardness and a roughness according to standard require.Each gauge is supplied with a certificate of calibration.
Conforms To:
IEC 60061-3
Specification:
Product Model | Standard | Product Name |
SFT G2-5110 | IEC60061-3,7006-27D-3 | E26"Go" gauge for caps E26,E26/50*39,E26/51*39. Max. dimensions of the screw thread |
SFT G2-5111 | IEC60061-3,7006-29L-4 | E26"Not Go" gauge for caps E26,E26/50*39,E26/51*39. E26 Max. major diameter of the screw thread |
SFT G2-5112 | IEC60061-3,7006-27E-1 | E26" Go" gauge for E26 and E26d caps on finished lamps |
SFT G2-5113 | IEC60061-3,7006-29A-2 | E26 Gauge for caps on finished lamps for testing protection against accidental contact E26d |
SFT G2-5114 | IEC60061-3,7006-29-3 | E26 Gauge for testing contact-making of lamps fitted with caps E26, E26/50*39, E26/51*39 & E26d（USD) |
SFT G2-5115 | IEC60061-3,7006-29-3 | E26 Gauge for testing contact-making of lamps fitted with caps E26, E26/50*39, E26/51*39 & E26d(JAPAN) |
SFT G2-5116 | IEC60061-3,7006-29B-2 | E26 Gauge with reference diameter of 23mm for caps E26d |
SFT G2-5117 | IEC60061-3,7006-29C-2 | E26 Gauge with reference diameter of 13.2mm for caps E26d |
SFT G2-5118 | IEC60061-3,7006-29D-1 | E26 Gauge with reference diameter of 10.4mm for caps E26d on finished lamp |
SFT G2-5119 | IEC60061-3,7006-25B-2 | E26"Go"plug gauge for screw threads |
SFT G2-5120 | IEC60061-3,7006-26A-2 | E26"Not Go"plug gauge for screw threads of lampholders |
SFT G2-5121 | IEC60061-3,7006-25J-1 | E26 plug gauge for lampholders for testing contract making |
