Conforms To
IEC62368 AnnexT.6/T.7/T.9,IEC60950 clause 4.2.5 and 4.2.6 , IEC60598-1 clause 4.13.4 testa(Figure 21)

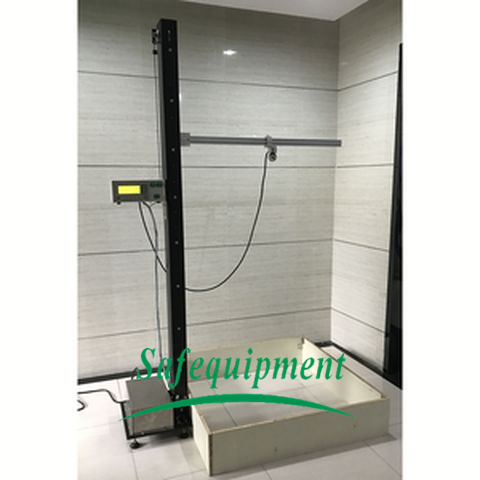

Automatic Ball Drop Tester （Model：SFT S2-1603）
Application
Used to carry out the impact test onthe equipment shell.
Conforms To
IEC62368 AnnexT.6/T.7/T.9,IEC60950 clause 4.2.5 and 4.2.6 , IEC60598-1 clause 4.13.4 testa(Figure 21)
Specifications
A, the horizontal surface: Size: 1000mm (long) X1000mm (wide)
B, Steel Ball: A solid smooth steel ball, approximately 50 mm in diameter and with amass of 500 g ± 25 g
C, Steel ball releasemechanism: electromagnet adsorption steel ball, through the power control ballrelease
D, Steel ball position:Manual left and right direction adjustable
E, Control part: Steppermotor + Drive, control the drop height, rise and fall height can be set,automatic adjustment
F, Control panel: LEDdisplay, key operation, digital display of the ball of height
G, Drop height: 1mm-1800mmcan be set, any zero position can be set
H, Safety shield,removable
I, Power Supply: 220V 50Hz or 115V 60Hz
J. Outer Dimensions: 1400mm* 1100mm * 2200mm
K. Weight: 65KG
Ordering Information
SFT S2-1603Automatic Ball Drop Tester - specify 220V 50Hz or 115V 60Hz
