ConformsTo
IEC60598-1 clause4.14.3

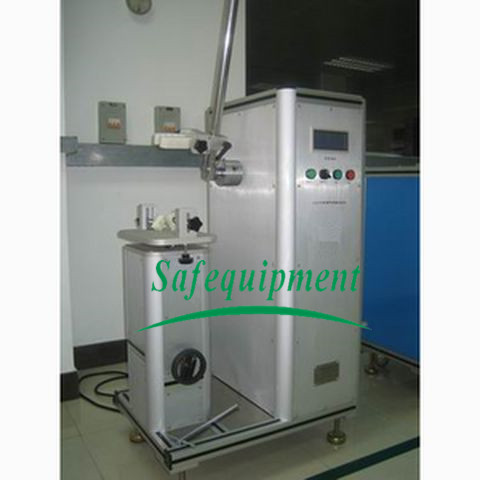

Adjusting Devices Tester (Model:SFT S2-1213)
Application.
Adjusting devices tester used to adjustable inclination position lamp ,floor lamp and lighting can be adjusted for professional use to reverse thedevice, bending test regulation.
ConformsTo
IEC60598-1 clause4.14.3
Instrument
SFT S2-1213A Adjusting devices tester use of digital control technologyand drive mechanism can be set to reverse , bending angle , drawing stroke ,rotation angle, speed test , test cycle ; a test is completed, the test failurealarm, easy to operate.
Feature:
---PLCcontrol and touch screen
---DriveSystem: motor + transmission system
---Clamp:Spindle jaw chuck, can replace
--- Liftadjustable removable tailstock
---Aluminumframe, panel with iron gray spray paint.
Specifications
A, Test rate rang: 0.1 to 10 tims/ min.(can be set)
B. Bending angle: on both sides of the vertical swing range 0-180 degree( can be set)
C. Turn the center height : 1200mm.
D. The maximum pendulum swing radius : R500mm.
E. Stretching movements e : 0-650mm.
F. Turn the action angle: 0-360 degree .
G. test cycles range : 1-999999 (can be set)
H. Outer Dimensions : W*D*H=680mm*680mm*1500mm
I, Weight: 100KG
OrderingInformation
SFT S2-1213 Adjusting Devices Tester
