Conforms To
IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1

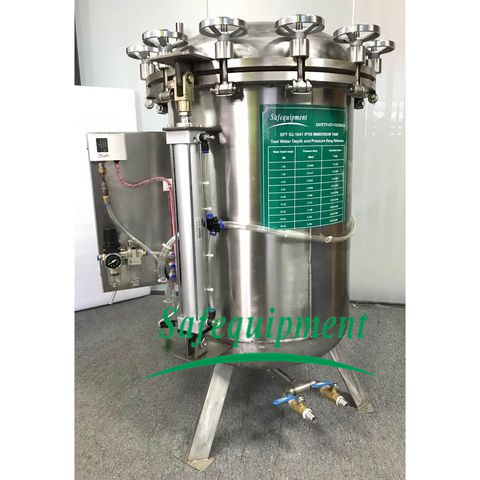

IPX7-IPX8 Immersion Tank (Model:SFT S2-1041A)
Application
IPX7 IMMERSION TANK is intended for testingprotection against ingress of water, IPX7 ingress of water in quantities causing harmfuleffects shall not be possible when the enclosure is temporarily immersed inwater under standardized conditions of pressure and time, and it isconstructed in compliance with IEC 60529.
Immersion up to 1 m, 0.15m above top 1m above bottom, Ingress of water in harmful quantityshall not be possible when the enclosure is immersed in water under definedconditions of pressure and time (up to 1 m of submersion). Testduration: 30 minutes and Immersion at depth of 1m
IPX8 IMMERSION TANK is intended for testingprotection against ingress of water, IPX8 Immersion beyond 1 m, and the equipment issuitable for continuous immersion in water under conditions which shall bespecified by the manufacturer. Normally, this will mean that the equipment ishermetically sealed. However, with certain types of equipment, it can mean thatwater can enter but only in such a manner that it produces no harmful effects.
Test duration: continuous immersion in water; Depth specified bymanufacturer
Conforms To
IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1
Specifications
A, Pressurized container : 304 Stainless steel tanks, inner diameter600mm , inner height 1200mm (other size options)
B, Test pressure range 1-30 meters depth adjustable (options 1-50 meters)
C, Pressure device : Compressed air (prepare by customer)
D, Pressure adjustment range : 0.05-300KPA (optins 0.05-600KPA)
E, Pressure gauge : digital display pressure gauge (Options A pointertype pressure gauge)
F, Test pressure: low pressure and high pressure can be set
G, Test time : 0-999 hour/min/second
H, The maximum limit pressure : Safety pressure 400KPA
I, Pressure protection : pressure switchprotection.
J, Automaticpressure discharge function after the test is finished
K, Water column height can be observed
M,Cylinder (aset of two) :Automatic switch cover function
J, Options:Temperature display rang: room temperature to 60°C
With over temperature protection
K, OuterDimensions: W*D*H=700*800*1800MM
L, Weight: 120KG
OrderingInformation
SFT S2-1041AIPX7-IPX8 Immersion Tank—220V 50HZ or 115V 60 HZ
