Conforms to
IEC60335-1clause 8.1.4,IEC60529clause 12.2,IEC60598-1 clause 8.2.5

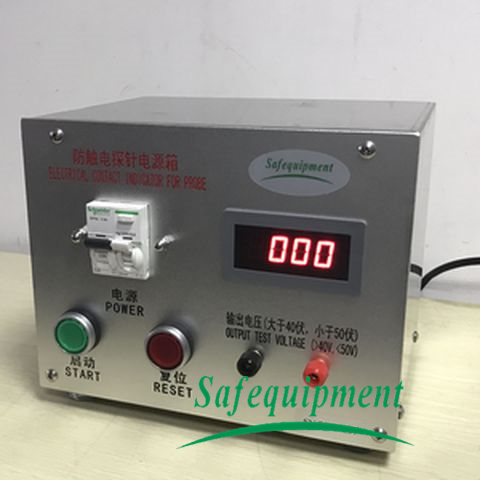

Electrical Contact Indicator (Model:SFT S1-2049)
Application
Safequipmentoffers a wide range of probes to meet the most common standards including thosefrom IEC, EN, UL, GB, and others. Such standards require the checking ofaccessibility to dangerous parts of home electronics and appliances, toys,tools, and a host of other products that are intended to be protected byenclosures. These probes simulate human fingers, tools, and other items thatwould be hazardous to come in contact with certain parts of products.
These probes are constructed from Delrin and appropriate steel or stainlesssteel etc. . Each probe is supplied with a certificate of calibration.
Specifications
Parts | Specifications | Conforms to | Remark |
SFT S1-2049 ELECTRICAL CONTACT INDICATOR | An electrical indicator with avoltage between 40V and 50V being used to show contact with the relevat parts. | IEC60335-1clause 8.1.4 IEC60529clause 12.2 IEC60598-1 clause 8.2.5 | Power: 220V 50HZ or 110V 50HZ Output test voltage: AC45V |
