ConformsTo
EN71-1 clause 8.7(EUROPE), IEC62115clause 14.7, EN1400:2013 clause 5.6 Figure 9, GB28482Figure16

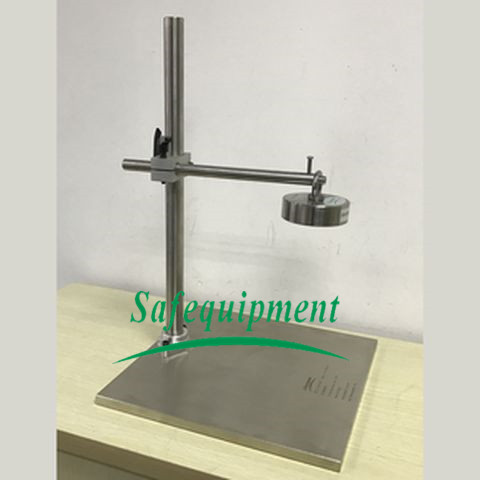

EN 71 Impact Test Device (Model:SFT S1-2150)
Application
Reduce materialdamage due to manufacturing or imitation protector toys as hazardous true faceprotection devices produced ( eg transparent material protective cover / helmet/ hat / goggles , etc. ) ; inspect toys for small children cannot sit alone inthe shell whether isolated or broken ; whether there is a palpable detection ofsmall parts , sharp edges dangerous , hazardous sharp points or dangerousdriving mechanism .
Impact Test
Place thetoy, or the relevant toy component, in its most onerous position on a planehorizontal steel surface and drop a metallic weight with a mass of (1 ± 0,02)kg, distributed over an area with a diameter of (80±2) mm, through a distance of (100 ±2) mm on to the toy. Perform the test once
ConformsTo
EN71-1 clause 8.7(EUROPE), IEC62115clause 14.7, EN1400:2013 clause 5.6 Figure 9, GB28482Figure16
Specifications
A, Plate Size: 300(l)x300(w)x16(h)mm
B, Adjustable height: 0-300mm or 0-400mm (Customizable)
C, Diameter of the hammer: 80±2mm
D, Weight of the hammer: 1±0.02kg
E, Dimensions: 300mm*300mm*450mm
F, Weight: 15KGS
OrderingInformation
SFT S1-2150EN71 Impact Test Device
