ConformsTo
ISO 8124-1(2014) table 1 Figure 20, ASTM F963-16 Figure 40, EN71-1 Figure15 table 1

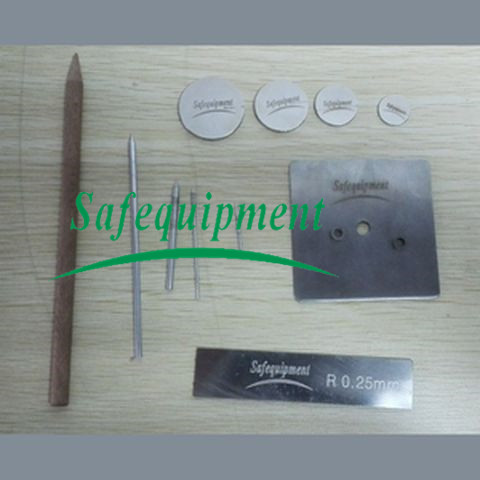

ISO 8124 Improvised Projectiles (Model:SFT S1-2099A)
Application
Projectiletoys with stored energy shall conform to the following requirements
e) The discharge mechanism shall be designed sothat it is unable to launch the improvised projectiles,
Specified in Figure 20 and Table 1, in amanner determined to be hazardous.
ConformsTo
ISO 8124-1(2014) table 1 Figure 20, ASTM F963-16 Figure 40, EN71-1 Figure15 table 1
Specifications

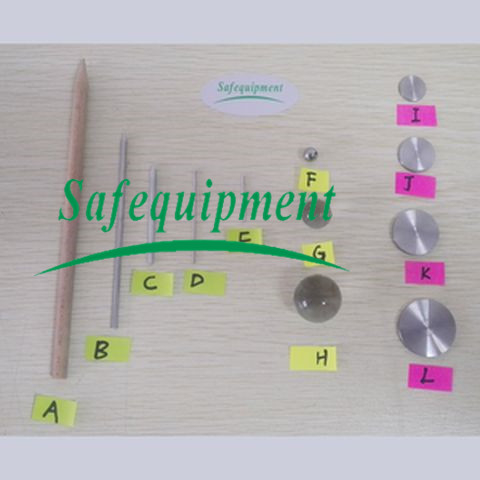

Designation | Name | Material | D | X1 | X2 | R 1 | H |
Shafts | |||||||
A | Pencil | Hardwood | 7 | 155 | 15 | 0.5 |
|
B | Long nail / pen refill | Aluminum | 3 | 100 | 5 | 0.1 |
|
C | Pen refill | Aluminum | 3 | 50 | 5 | 0.1 |
|
D | Short nail / toothpick | Aluminum | 1.5 | 50 | 2.3 | 0.05 |
|
E | Toothpick | Aluminum | 1.5 | 25 | 2.3 | 0.05 |
|
Spheres |
| ||||||
F | Steel ball | Steel | 8 |
|
|
|
|
G | Marble 1 | Glass | 16 |
|
|
|
|
H | Marble 2 | Glass | 25 |
|
|
|
|
Discs | |||||||
I | Small coin | Steel | 15 |
|
|
| 1.5 |
J | Medium coin | Steel | 20 |
|
|
| 2 |
K | Large coin | Steel | 25 |
|
|
| 3 |
L | X-Large Coin | Steel | 30 |
|
|
| 3 |
Tolerances:
Shaft A: X1 + X2 = ± 2 mm; D = ± 0.5 mm
Shafts B, C ,D & E: X1 & X2 = ± 1 mm; D = ± 0.2 mm
Spheres F, G & H: D = ± 1 mm
Discs I, J, K & L: D = ± 0.5 mm; H = ± 0.2 mm
Radius on shaft tips are not critical dimensions and no tolerances arespecified.
NOTE: Due to possible dimensional changes caused by heat and/orhumidity, the improvised projectiles should be stored in a controlled environmentof 21 ± 1 °C and 65 ± 5% relative humidity.
OrderingInformation
SFT S1-2099AISO 8124 Improvised Projectiles
Include: A-L
