Sharp Edge Tester (Model:SFT S1-2070)


16CFR 1500.49 CPSC USA, ASTM F963 clause 4.7 Fig8, EN71-1 clause 8.11 Figure 25, ISO8124-1

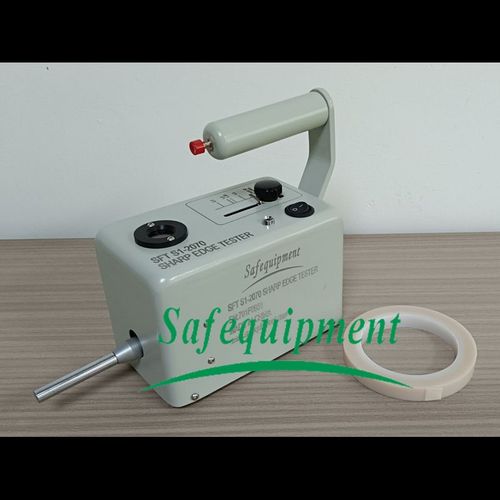

Sharp Edge Tester (Model:SFT S1-2070)


To determinewhether accessible edges on toys are likely to cause injury. A self-adhesive PTFE tapeis attached to a mandrel, which is then rotated for a single 360-degreerevolution along the accessible edge being tested. If the tape is cut in halfor longer in length (approx. 13 mm), the edge is identified as a hazardoussharp edge. Toys intended for use by children under 8 years old are subject to this requirement before or after use& abuse testing.


EN 71-1:2014+A1:2018 clause 8.11 Figure 25, ASTM F963-2023 Fig8, AS/NZS 8124.1:2019+Amd1+Amd2:2020, ISO 8124-2018+Amd1+Amd2:2020, SOR/2011-17, 16CFR 1500.49 CPSC, GB6675.2-2014, GB/T31702-2015


A, Spindle Diameter: 0.375“(+0.005“/-0.002“)  ASTM F963

                  9.53(+0.12/-0.12)mm    EN71

B, Force: 1.35lbf(6.0N)  ASTM F963

             6(+0.5/-0.5)N   EN71-1

             6(+0/-0.5)N   ISO8124.1

             5.5(+0.5/-0.5)N   SOR/2011

C, Spindle swivel rate: 1“(+0.08“/-0.08“)/S  ASTM F963

                                   23(+4/-4)mm/S     EN71

D, Hardness: >HRC40

E, Power adapter: Toshiba: input 110-220VAC, output 15VDC 5A (CE mark)

F, Dimensions: 275mm*290mm*105mm

G, Weight: 2KGS


SFT S1-2070 Sharp edge tester


SFT S1-2070A Self-adhesive tape for Sharp edge tester
