Test Corner (Temperature Rise Test) (Model:SFT S2-1062)


IEC60065, IEC60950, IEC60335-1, IEC60598-1

Test Corner (Temperature Rise Test) (Model:SFT S2-1062)


Test corner is used to electrical and electronic products,household appliances, etc. in normal use on its ambient temperature of theappliance.

Require thedevice under test at 5cm away from the leading edge of a wooden box, and alongthe sides and top 1cm space required after the device to have a 5cm deep space.


IEC60065, IEC60950, IEC60335-1, IEC60598-1


A, Size :1000mm ( L ) * 1000mm ( W ) * 1000mm ( D ) , a total of two side plates , abottom plate , a top plate , the top can be removed

B, Temperaturemeasurement point : standard 136 measurement points (other quantity can supply,eg,24, 64,108, 200,300, 400, 500 etc)

C, Temperaturemeasurement point : 6 x6 = 36, at the bottom of the two sides each 6 x 7 = 42,the top 4 x 4 = 16,

                                                                  from both sidesand the bottom and top surface joint started

D, Temperature measurement point : 100mm * 100mm square

E, Temperature brass pieces : Diameter 15mm, thickness 1mm

                                                       Surface embeddedtest corner.

                                                       Brass measuringblackened side , the other side is connected thermocouple which is arranged onthe bottom .

Copper pitchreference to the following picture (A = 100mm, B = 100mm),

F, Thermocouple : <Dia. 0.3mm K -type each about 2 meters (or othersize thermocouple avaibale according to test require)

G, Plywood : 20mm thickness of the plywood , painted matt black , grayfilm affixed to the back

H, Wheels: Bottom-mounted four wheel , wheel height 100mm, easy disassemble

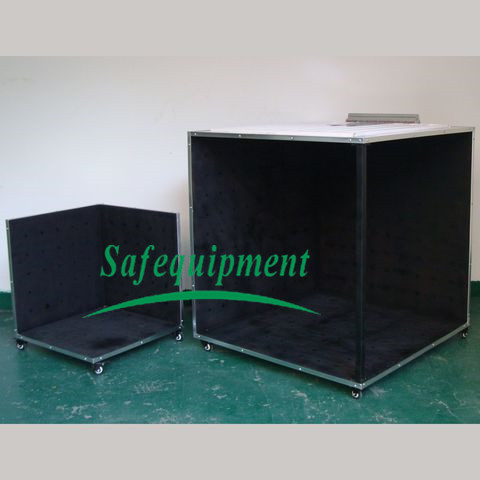

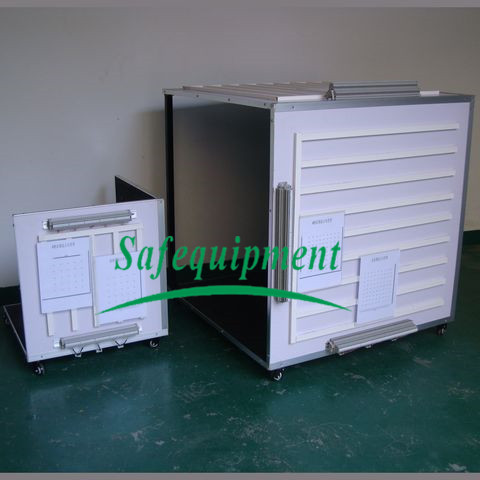

SFT S2-1062Test Corner (Temperature Rise Test)

Include: Thestandard 136 temperature measuring points

Temperature of copper


Thermocouple wiring row
