Conforms To:
IEC60968-1, IEC60061-3

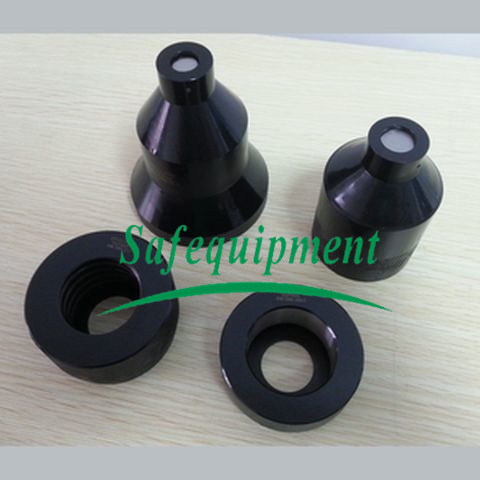

E39 Lamp Gauge (Model:SFT S1-2770)
Application:
Safequipment offers a wide range ofgauge to meet the most common standards including those from IEC, EN, UL,GB,DIN,VDE and others. Such standards require the checking of size &definition etc. these gauges are constructed from senior stainless steel andappropriate steel with a hardness and a roughness according to standard require.Each gauge is supplied with a certificate of calibration.
Conforms To:
IEC60968-1, IEC60061-3
Specification:
Product Model | Standard | Product Name |
SFT S1-2770 | IEC60061-3,7006-24B-1 | E39 "Go"gauges for E39 caps on finished lamps |
SFT S1-2771 | IEC60061-3,7006-24C-1 | E39 "Not Go"gauges for E39 caps on finished lamps |
SFT S1-2772 | IEC60061-3,7006-24A-1 | E39 Gauge for finished lamps fitted with E39 caps for testing contact making |
SFT S1-2773 | IEC60061-3,7006-24E-1 | E39"Go"plug gauge for screw threads |
SFT S1-2774 | IEC60061-3,7006-26-4 | E39"Not Go"plug gauge for screw threads of lampholders |
SFT S1-2775 | IEC60061-3,7006-24D-1 | E39 plug gauge for lampholders for testing contract making |
SFT S1-2776 | IEC60061-3,7006-24F-1 | E39 Gauge for testing max. insertion torque in lampholders with shell-grip features |
SFT S1-2777 | IEC60061-3,7006-24G-1 | E39 Gauge for testing min. torque in lampholders with shell-grip features |
