Conforms To:
IEC 60061-3, IEC 60238, IEC 60968-1, IEC 60399, IEC 60360, IEC 60432-1

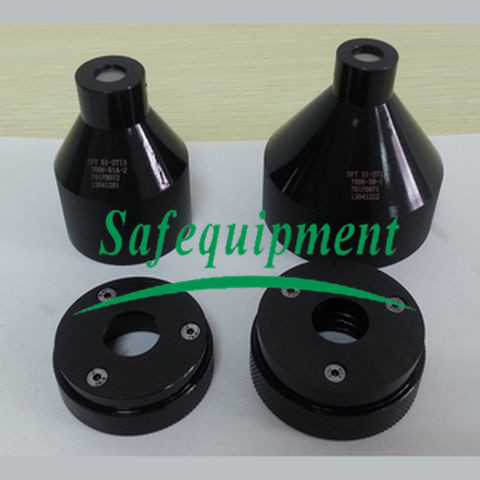

E27 Gauge 7006-27B-1/7006-51A-2/7006-22A-5(Model:SFT G2-5050)
Application:
Safequipment offers a wide range ofgauge to meet the most common standards including those from IEC, EN, UL,GB,DIN,VDE and others. Such standards require the checking of size &definition etc. these gauges are constructed from senior stainless steel andappropriate steel with a hardness and roughness according to standard require.Each gauge is supplied with a certificate of calibration.
Conforms To:
IEC 60061-3, IEC 60238, IEC 60968-1, IEC 60399, IEC 60360, IEC 60432-1
Specification:
Product Model | Standard | Product Name |
SFT G2-5050 | IEC60061-3,7006-27B-1 | "Go"gauges for E27 caps on finished lamps |
SFT G2-5051 | IEC60061-3,7006-28A-1 | "Not Go"gauges for E27 caps on finished lamps |
SFT G2-5052 | IEC60061-3,7006-50-1 | Gauge for finished lamps fitted with E27 caps for testing contact making |
SFT G2-5053 | IEC60061-3,7006-51A-2 | Gauge for E27 caps on finished lamps for testing port. Against acc. Contact during insertion |
SFT G2-5054 | IEC60061-3,7006-51-2 | Gauge for caps on finished lamps for testing port. Against acc. Contact E27 51*39 |
SFT G2-5055 | IEC60061-3,7006-27C-1 | "Go"gauges for dimension "S1" of E27 caps on finished lamps |
SFT G2-5056 | IEC60061-3,7006-25A-2 | E27 "GO “gauge for lampholders |
SFT G2-5057 | IEC60061-3,7006-26-4 | E27"Not Go"plug gauge for screw threads of lampholders |
SFT G2-5058 | IEC60061-3,7006-21-5 | E27 Gauge for testing port. Against bulb-neck damage and for testing contract making in lampholders |
SFT G2-5059 | IEC60061-3,7006-22A-5 | E27 Gauge for testing contact making and port. Against acc. Contact during insertion |
SFT G2-5060 | IEC60061-3,7006-22B-1 | E27 Gauge for detecting side-contacts with cutting-edges |
SFT G2-5061 | IEC60061-3,7006-22C-1 | E27 Gauge I. for testing resilience of side contact |
SFT G2-5062 | IEC60061-3,7006-22D-1 | E27 Gauge II. for testing resilience of side contact |
SFT G2-5063 | IEC60238 Fig 11 | E27 Test Cap for temperature test 14.4 and 19.3 of IEC60238 |
SFT G2-5064 | IEC60238 Fig 5 | E27 Test Cap for torque test clause 18 of IEC60238 |
SFT G2-5065 | IEC60238 Fig 14 | E27 Test Cap for resistance to heat test clause 19 of IEC60238 |
SFT G2-5066 | IEC60399 | E27 External thread "Go"gauges |
SFT G2-5067 | IEC60399 | E27 External thread "Not Go “gauges |
SFT G2-5068 | IEC60360 FIG5 | Approximates dimension of test lampholder for E26/50*39,E27/51*39/,E26,E26d and E27 caps |
SFT G2-5069 | IEC60432-1 Figure C.2 | E27 Test Holder for torque test on lamps with screw caps |
