Conforms To:
IEC 60061-3, IEC 60360

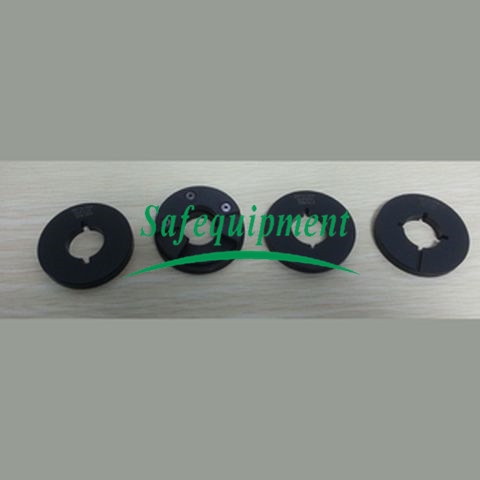

B15 Gauge 7006-11-8/7006-4B-1/7006-15B-1(Model:SFT G2-5030)
Application:
Safequipment offers a wide range ofgauge to meet the most common standards including those from IEC, EN, UL,GB,DIN,VDE and others. Such standards require the checking of size &definition etc. these gauges are constructed from senior stainless steel andappropriate steel with a hardness and a roughness according to standard require.Each gauge is supplied with a certificate of calibration.
Conforms To:
IEC 60061-3, IEC 60360
Specification:
Product Model | Standard | Product Name |
SFT G2-5030 | IEC60061-3,7006-10-8 | "Not Go"gauges for caps on finished lamps BA9,B15,B22&BY22d |
SFT G2-5031 | IEC60061-3,7006-11-8 | "Go"gauges for caps on finished lamps BA9,B15,B22&BY22d |
SFT G2-5032 | IEC60061-3,7006-4A-2 | B22 or B15 Diametrical position of the pin Inserction in lampholder |
SFT G2-5033 | IEC60061-3,7006-4B-1 | B22or B15 Diametrical position of the pin Retention in lampholder |
SFT G2-5034 | IEC60360 FIG10 | Approximates dimension of test lampholder for B15d caps |
SFT G2-5035 | IEC60360 FIG11 | Approximates dimension of test lampholder for B15d /27*22caps |
SFT G2-5036 | IEC60360 FIG12 | Approximates dimension of test lampholder for B15d /27*14caps |
SFT G2-5037 | IEC60061-3,7006-12D-2 | B15 "Go"gauges for lampholders |
SFT G2-5038 | IEC60061-3,7006-12C-2 | B15 "Not Go"gauges for lampholders |
SFT G2-5039 | IEC60061-3,7006-13-5 | Gauges for slots in lampholders B15d,B22d, B22d-3&BY22d |
SFT G2-5040 | IEC60061-3,7006-15B-1 | B15 Gauge for checking contact position and contact force in bayonet lampholders |
