Conforms To
IEC60884-1Figure13& 18 & 19, GB2099.1, GB2099.2, GB2099.3, GB1002

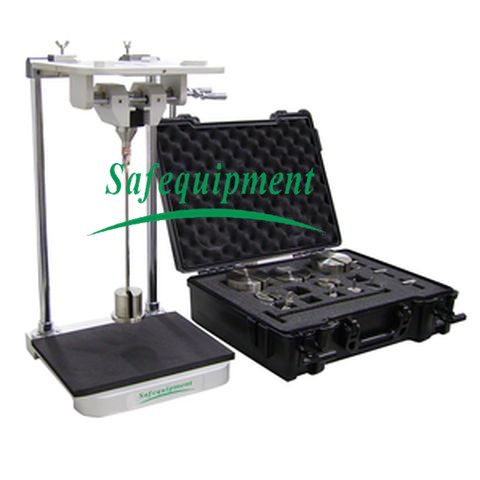

Socket & Plug Strength Tester (Model:SFT S2-1305)
Application
Theconstruction of accessories shall allow for easy insertion and withdrawal ofthe plug, and prevent the plug from
working outof the socket-outlet in normal use. Interlocked accessories are tested in theunlocked position.
Complianceis checked, for socket-outlets only, by a test to ascertain that the max forcenecessary to withdraw the
test plugfrom the socket-outlet is not higher than the force specified in standard; by atest to ascertain that the min
forcenecessary to withdraw a single pin gauge from the individual contact assemblyis not lower than the force
specified instandard.
Instrument
TheSafequipment Socket and Plug Strength Tester is designed to meet the exactingrequirements of major
internationalstandards such as IEC 60884-1. The clamping system is easy to operate. The topplate swivels up from
a horizontalposition to a vertical orientation and the clamping device can be rotated inthe top plate. These features
allow the deviceto be set up in many different configurations to meet different standardrequirements. Standard
plugs andweights are supplied to perform testing on sockets rated up to 16A.
Pin gaugesand the appropriate weights for testing minimum withdrawal force are soldseparately. The required
dimension ofthe pin gauge needs to be specified by the customer.
Features
---Standardplugs and weights for testing sockets rated up to 16A
---Testplugs made from hardened steel with roughness not exceeding 0.8um
---Top platepivots from horizontal to vertical
---Sampleclamp rotates 360°
Conforms To
IEC60884-1Figure13& 18 & 19, GB2099.1, GB2099.2, GB2099.3, GB1002
Specifications
Dimensions :W*D*H=280mmx300mmx600mm
Weight :30KG
Ordering Information
SFTS2-1305 Socket & Plug Pull &Plug Strength Tester
Includes:
1 Weighttray
1 PrincipalMass and Supplementary Mass (10A 2pin)
1 PrincipalMass and Supplementary Mass (10A 3pin & 16A 2pin)
1 PrincipalMass and Supplementary Mass (16A 3pin)
1 StandardPlug(10 A 1pin)
1 StandardPlug(10 A 2pin)
1 StandardPlug(10 A 3pin)
1 StandardPlug(16 A 1pin)
1 StandardPlug(16 A 3pin)
1 Plug forTransverse Stress Test(10A 2pin)
1 Plug forTransverse Stress Test(10A 3pin)
1 Plug forTransverse Stress Test(16A 3pin)
1 5N Weightfor Transverse Stress Test
1 Cushion
