IPX5-6 Jet Test Set (Model:SFT S2-1031)

ConformsTo

IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1


IPX5-6 Jet Test Set (Model:SFT S2-1031)


Application

IPX5 and IPX6 call for a specimen to be sprayed with water fromall practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and aflow rate of 100l/min.

Instrument

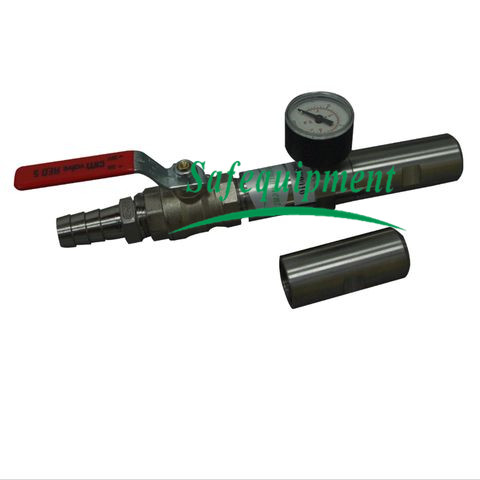

The SFT IPX5-6 JetTest Set consists of a jet handle that is equipped with a pressure gauge and aneasy-to-adjust flow valve. The interchangeable nozzles assemble easily to thejet handle. The nozzles are made from stainless steel.

Features

---Stainless steelnozzles

---Valve for waterflow regulation and shut off

---Pressure gauge

---Hose connector

---Interchangeablenozzles

ConformsTo

IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1

Specifications

A, Nozzle Diameter : 6.3mm(IPX5)

12.5mm(IPX6)

B, Pressure Gauge : 0 - 1.6 bar

C, Dimensions:7mm*26mm*3mm

D, Weight: 1.0kg (Approx.)

OrderingInformation

SFT S2-1031 IPX5-6 Jet Test Set

Includes:  Nozzle dia. 6.3mm(IPX5)
Nozzle dia. 12.5mm(IPX6)

SFT S2-1032 IPX5 Jet Test Set

SFT S2-1033 IPX6JetTest Set

Options:Flow meter (flow rang 10-100 liter/min)
